WEICON Belt Repair-Kit
Two-component adhesive based on polyurethane, provides quick repairs and coating of rubber surfaces
Ductile metal, thanks to its high mechanical strength, is particularly suitable for repairing rubber and metal elements exposed to impact, abrasion or vibration.
Belt repair kit for quick and easy machining.
The system is suitable for a variety of applications, such as the repair and coating of conveyor belts, the repair of rubber coatings, for use as elastic wear protection and for the quick repair of worn rubber surfaces.

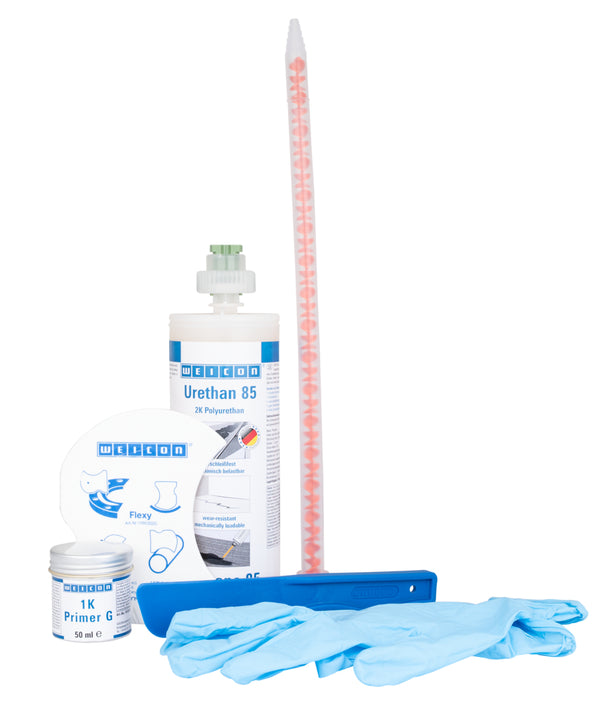

In addition to the polyurethane system, the set includes a primer for pre-treatment of the surface and a spatula for even distribution of the mass.
Application:
- elastomeric belts and tapes (rubber, PVC, PU)
- belts on conveyor belts
- belts on transport rollers
- metal components
- rubber elements
Features and Benefits:
- Quick processing without tools
- Flexible, impact resistant
- Wear and abrasion resistant
- High resistance to chemicals and pressure
Technical data
| Urethane 85 technical data | |
| Base | polyurethane |
| Color after curing | black |
| Mixing ratio resin/hardener weight in % | 10:100 |
| Viscosity | Paste |
| Open time at +20°C | 20 minutes |
| Mechanisch belastbar / separation after expiration . | 6 - 8 Std |
| Final strength after | 24 std |
| Shore hardness | A 85 |
| Breaking elongation (DIN EN ISO 527) | 470% |
| Tensile strength ISO 527 max | 7.8N/mm² |
| E-Modul adhesion (DIN EN ISO 527) | 9.6N/mm² |
| Breaking strength | 31kN/m |
| Average pull strength with Primer G acc. DIN EN 1465 | |
| sandblasted steel | 8N/mm² |
| Sandblasted stainless steel | 8N/mm² |
| Sandblasted aluminum | 7N/mm² |
| Hot-dip galvanized steel | 4N/mm² |
| Water absorption (after 7 days) | <1.5% |
| Thermal resistance (wet state) | -60 to +60 °C |
| Thermal resistance (dry state) | -60 to +100 °C |
| Primer G Specifications | |
| Base | Urethane |
| Color | yellowish-transparent |
| Mixing ratio resin/curing agent weight | 32:1 |
| The viscosity of the mixture | 1.1g/cm³ |
| Viscosity at +20 °C (+68 °F) Brookfield | 40 mPa s |
| Open time at +20°C | 15 minutes |
| Polyurethane coating | from 30 to 60 minutes |
Accessories
- 10653491 Gun dispenser 2K 10:1,
- 10953001 Processing spatula, short
- 10953003 Processing spatula, long
- 10953020 Contour Spatula Flexy,
- 13955050 Special fabric
Shelf life
WEICON Urethane should be stored in a dry place at room temperature. Unopened containers may be stored at +18°C to +25°C for at least 6 months from the date of delivery. Opened containers must be used within 3 months.
Available packages:
[ 500g ] [ 590g ]
