NSF-approved assembly pastes
Anti-Seize "High-Tech" has high thermal resistance and excellent separating properties, does not contain metals, is neutral to materials and is NSF certified. Anti-Seize "High-Tech" is particularly recommended in applications where
where metal-containing preparations can cause electrolytic reactions, extreme thermal resistance, a certificate for contact with food and an aesthetic color of the preparation are required.
Application:
- In applications where metal-containing preparations may cause electrolytic reactions
Features and Benefits:
- Durable corrosion protection
- High thermal resistance
- Contains no metals
- Material neutral
- NSF Approved
- Aesthetics
- Without silicone
Technical data
| Base | Medical grade white oil |
| Color | white |
| Viscosity at +25 °C (DIN 51757) | 1.42g/cm³ |
| Coefficient of friction | 0.10-0.13 |
| Coefficient of friction - total | 0.13µ |
| Coefficient of friction - thread | 0.11µ |
| Coefficient of friction - reversed | 0.14µ |
| VKA-TEST (DIN 51350) working load | 3.600N |
| VKA-TEST (DIN 51350) welding force | 3.800N |
| VKA-TEST (DIN 51350) flaw (1 Min/1000N) | 0.7mm |
| Worked Penetration (DIN ISO 2137) | 310 - 340 1/10mm |
| Specific Thermal Ability (20°C) | 1.574 J/(g K) |
| Thermal resistance (20°C) | 0.302mm²/sec |
| Thermal conductivity (ISO 22007-4) (20 °C) | 0.675 W/m K |
| Dielectric strength (DIN EN 60243-1) at 20°C | 6.3kV/mm |
| Sulfur content (DIN 51400) | <0.1% |
| Water resistance (DIN 51807) | 1 - 90 |
| pressure load | 230N/mm² |
| Shelf life | 24 months |
| The viscosity of the mixture | - |
| brine test | > 170 hours |
| Specific resistance | 1.0 x 10^15 Ohms/cm |
| Thermal resistance | -40 to +1,400 °C |
| ISSA code | 53.402.81/... /89 |
| IMPA code | 450882/ ... /87 |
Application method:
Depending on the degree of contamination, first clean the lubricated surface with WEICON Cleaner S. Treat the screws used mechanically with a wire brush and clean them with WEICON Cleaner S.
Apply the assembly paste evenly with a brush, brush, cloth or sponge. In the case of screws, it is important that the paste is applied all the way to the base of the thread to achieve a good sealing effect. Assembly pastes should not be mixed with oils or greases. Assembly paste does not replace grease or oil.
Attention:
When using WEICON products, please observe the physical, safety, toxicological and ecological data and regulations in our safety data sheets (www.weicon.de).
Available packages:

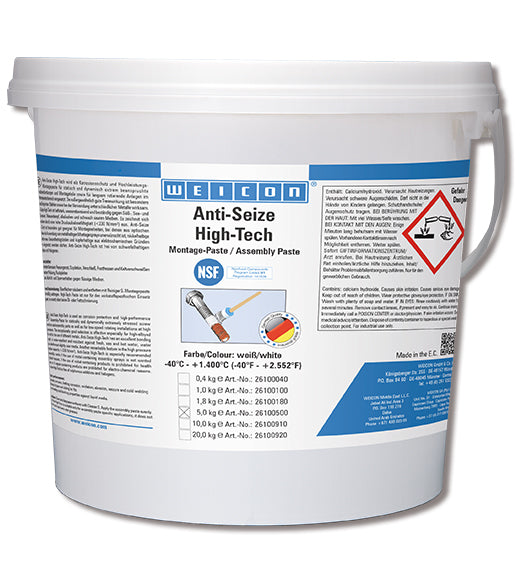

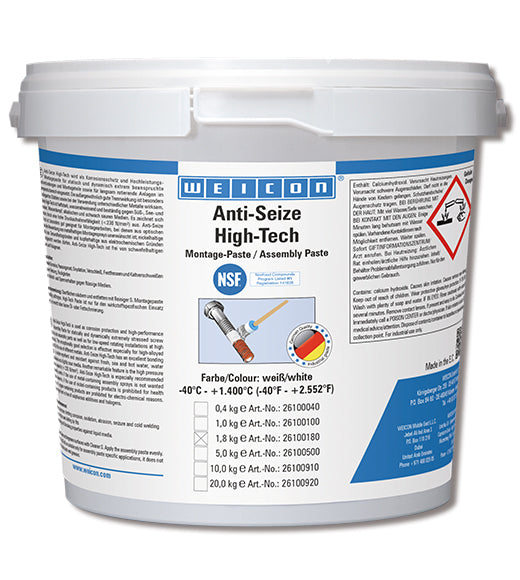

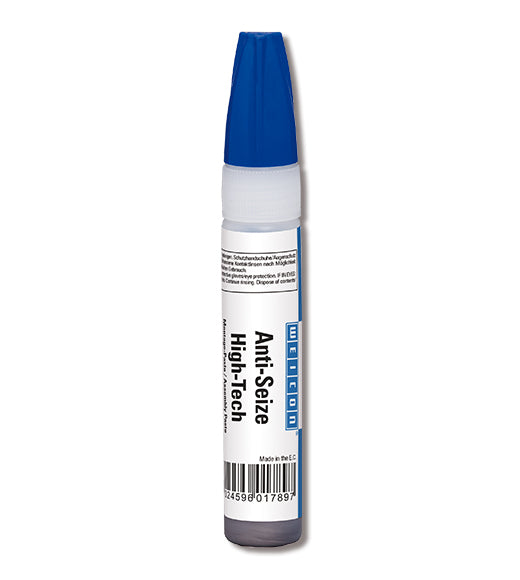

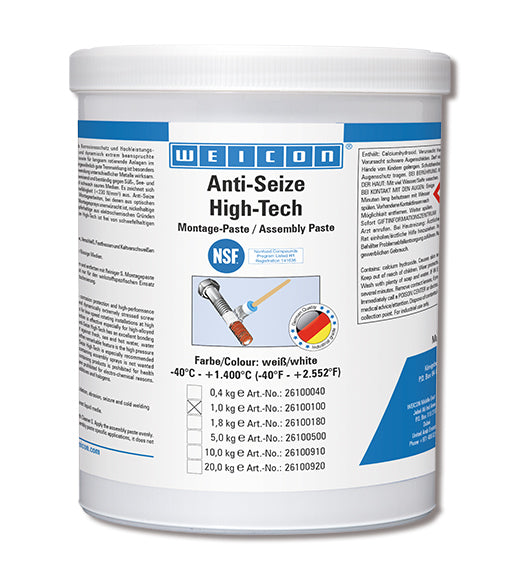

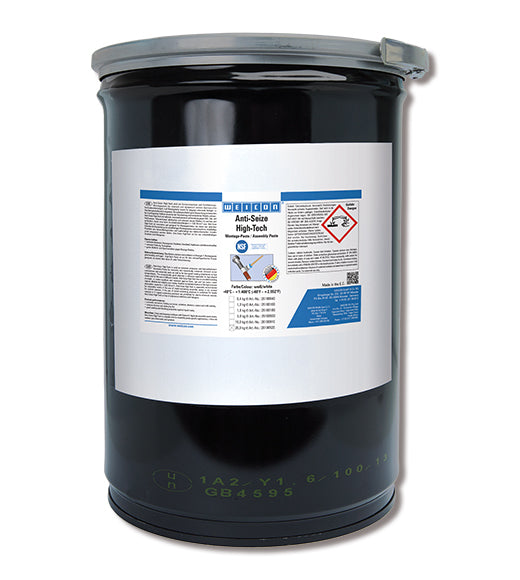

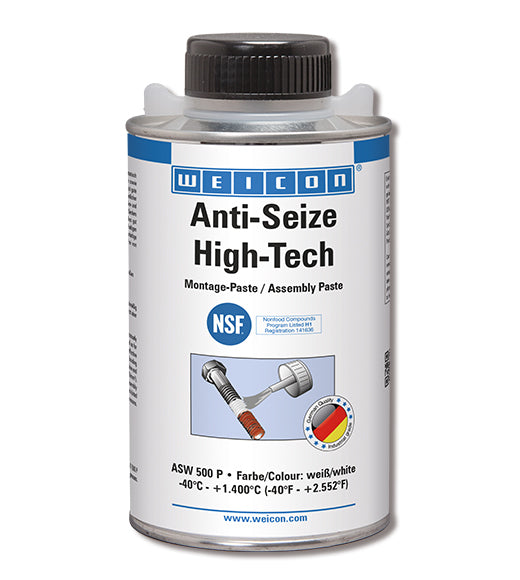

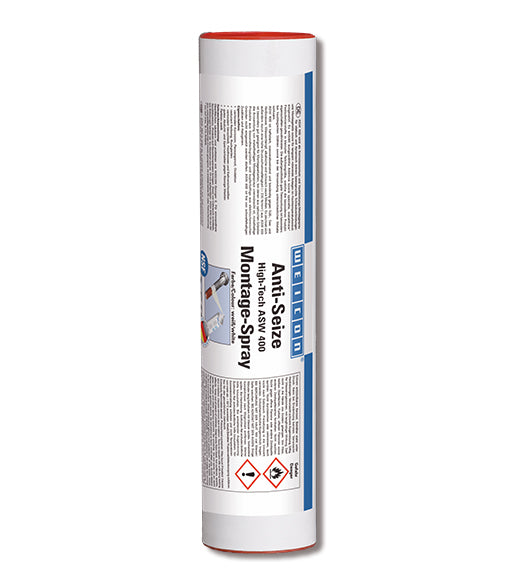

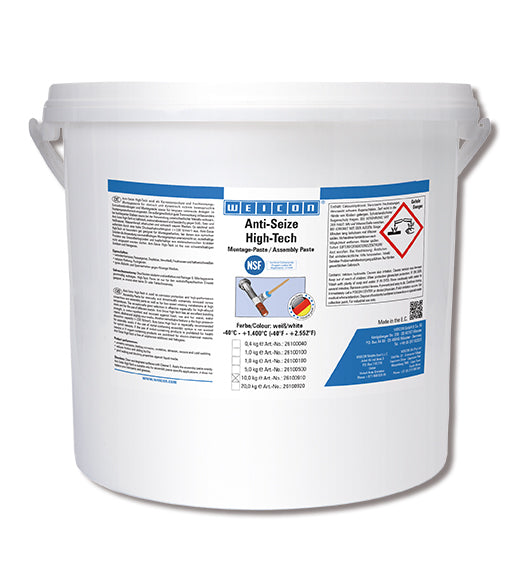

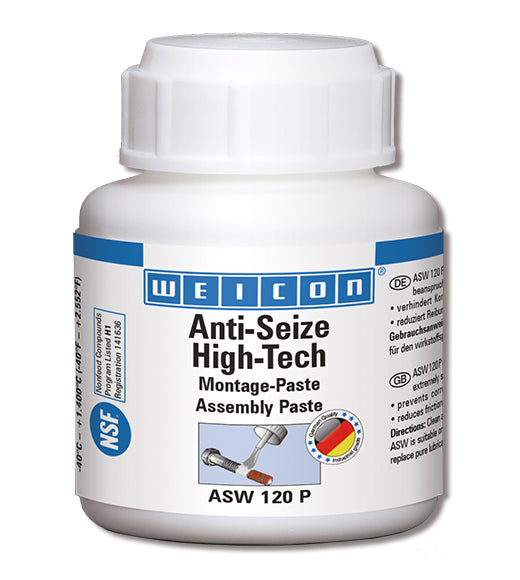

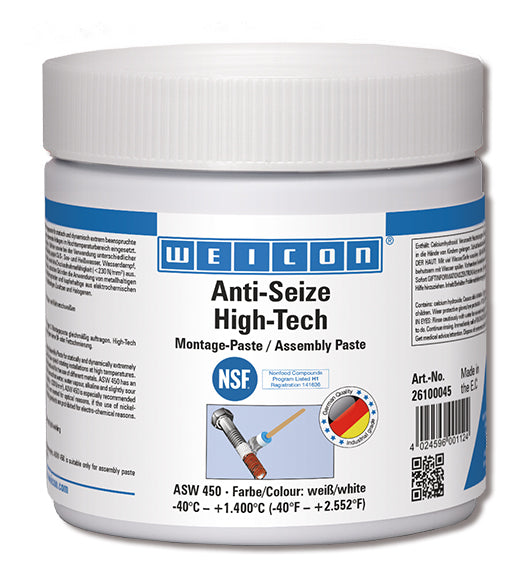

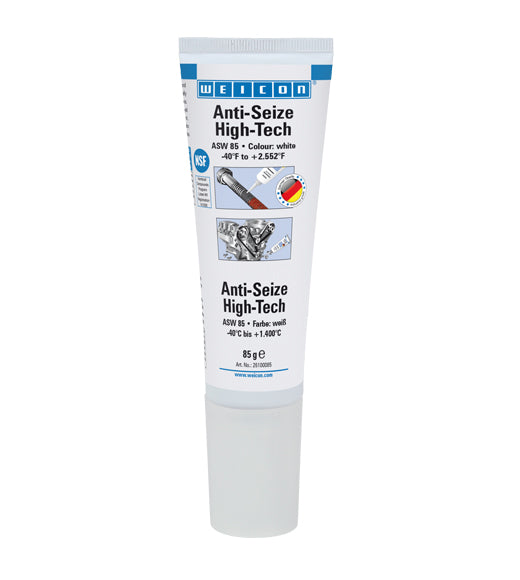

[ 30 g ][ 85 g ][ 120 g ][ 200 ml ][ 400 g ][ 450 g ][ 500 g ][ 1 kg ][ 5 kg ][ 10 kg ][ 20 kg ][ 1.8 kg ]
